Pressure Control Equipment

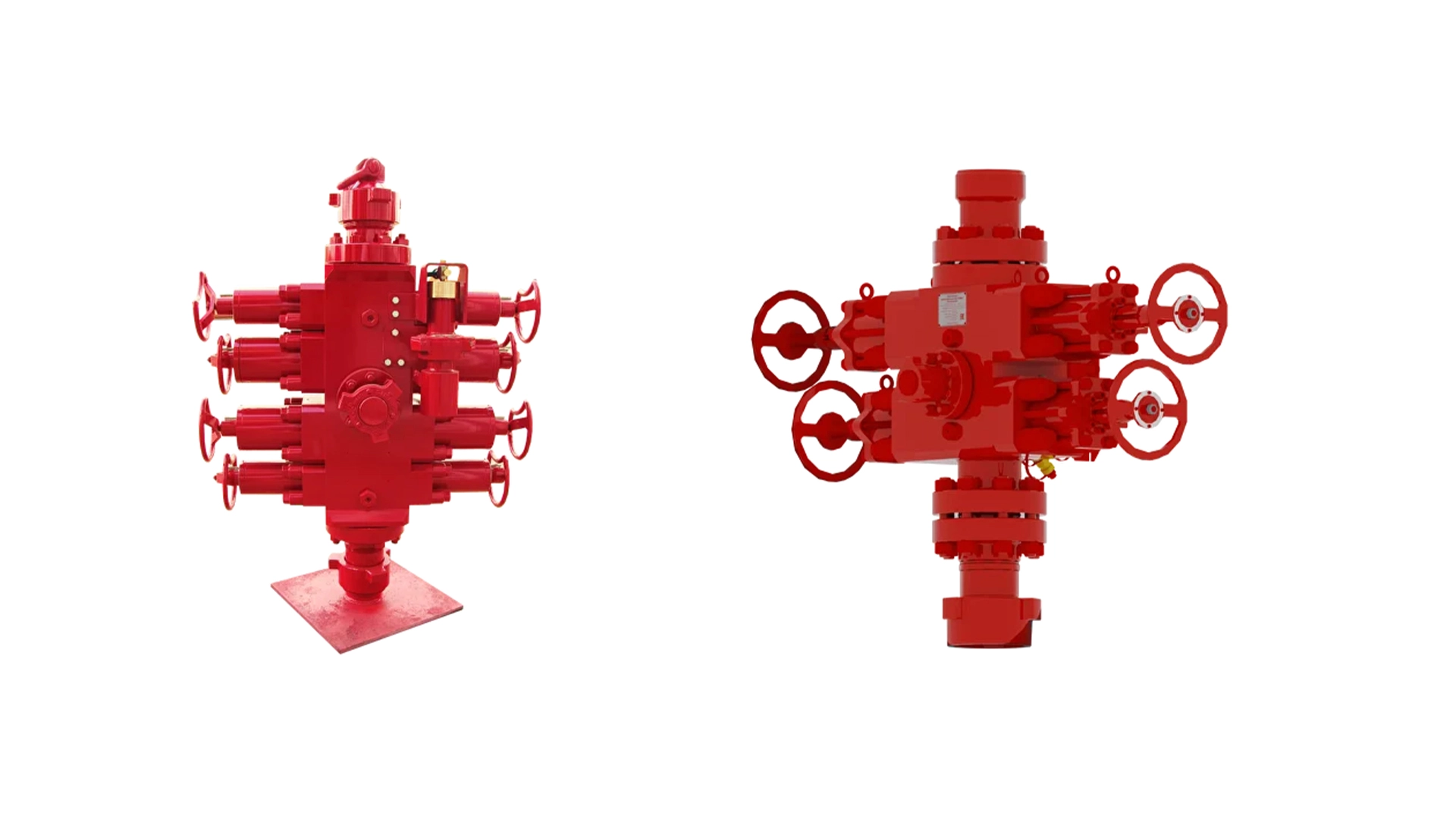

Blowout preventer​

Blowout preventer

Blowout preventer is designed for sealing the wellhead during CT roundtrip operation, avoiding and liquidation of oil and gas fountain, environment protection and safe operating conditions on the wellhead. Can operate with CT up to 2-7/8” at 15,000 PSI wellhead pressure. The BOP can operate with or without tubing inside, can hand the string on rams and keep it from blowout under wellhead pressure.

 GT80-70         GT100-70       GT100-105

GT100-105-20 (two door)

Inside diameter           3.06”  4.06”  4.06”  4.06”
Max working pressure          10 000 PSI      10 000 PSI      15 000 PSI      15 000 PSI
Coiled Tubing size     3/4” – 2”        1-1/2” – 2-7/8”           1-1/2” – 2-7/8”           1-1/2” – 2-7/8”
Coiled Tubing Stripper​

Coiled Tubing Stripper

Coiled Tubing Stripper is designed for sealing the wellhead during CT roundtrip, rated for 15,000 PSI wellhead pressure and available for CT size up to 2-7/8”.
CT Stripper provides sealing the wellhead with tubing inside it.

 GT80-70         GT100-70       GT100-105

GT100-105-20 (two door)

Inside diameter           3.06”  4.06”  4.06”  4.06”
Max working pressure          10 000 PSI      10 000 PSI      15 000 PSI      15 000 PSI
Coiled Tubing size     3/4” – 2”        1-1/2” – 2-7/8”           1-1/2” – 2-7/8”           1-1/2” – 2-7/8”
