Nitrogen Units
FIDMASH oilfield service equipment line also includes non-fired type nitrogen units which can be used together with coiled tubing fleet during well repair and completion. Such units transform liquid nitrogen into gas which is then pumped into the well under pressure.
A300 Nitrogen Unit is a FIDMASH design for deep hydraulic fracturing operations with nitrogen.

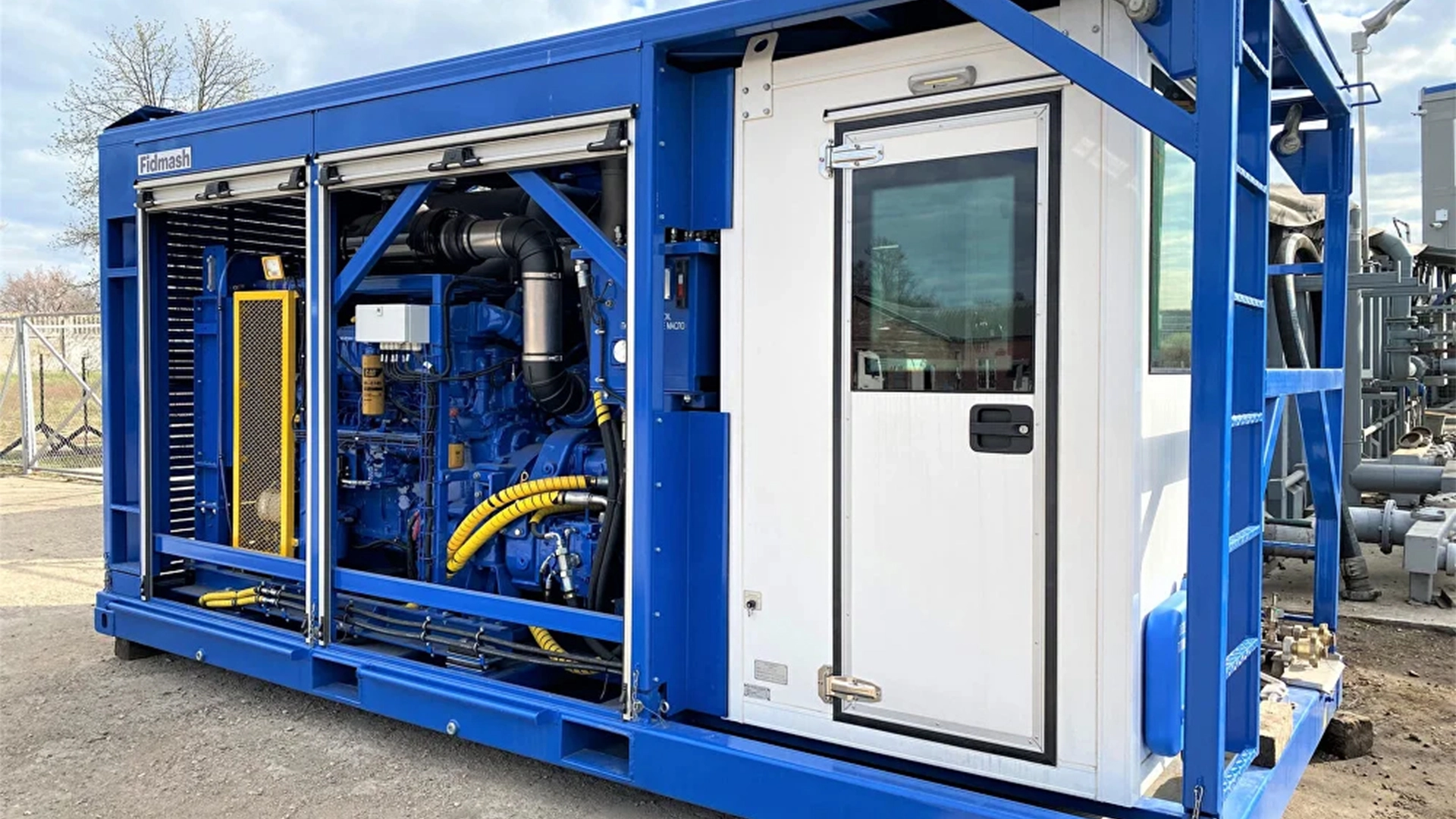

A100-60 Nitrogen Unit
Transport base | skid mounted |
Max working pressure | 10 000 PSI |
Max flow rate | 180 000 SCFH |
Gaseous N2 purity | 99,9 % |

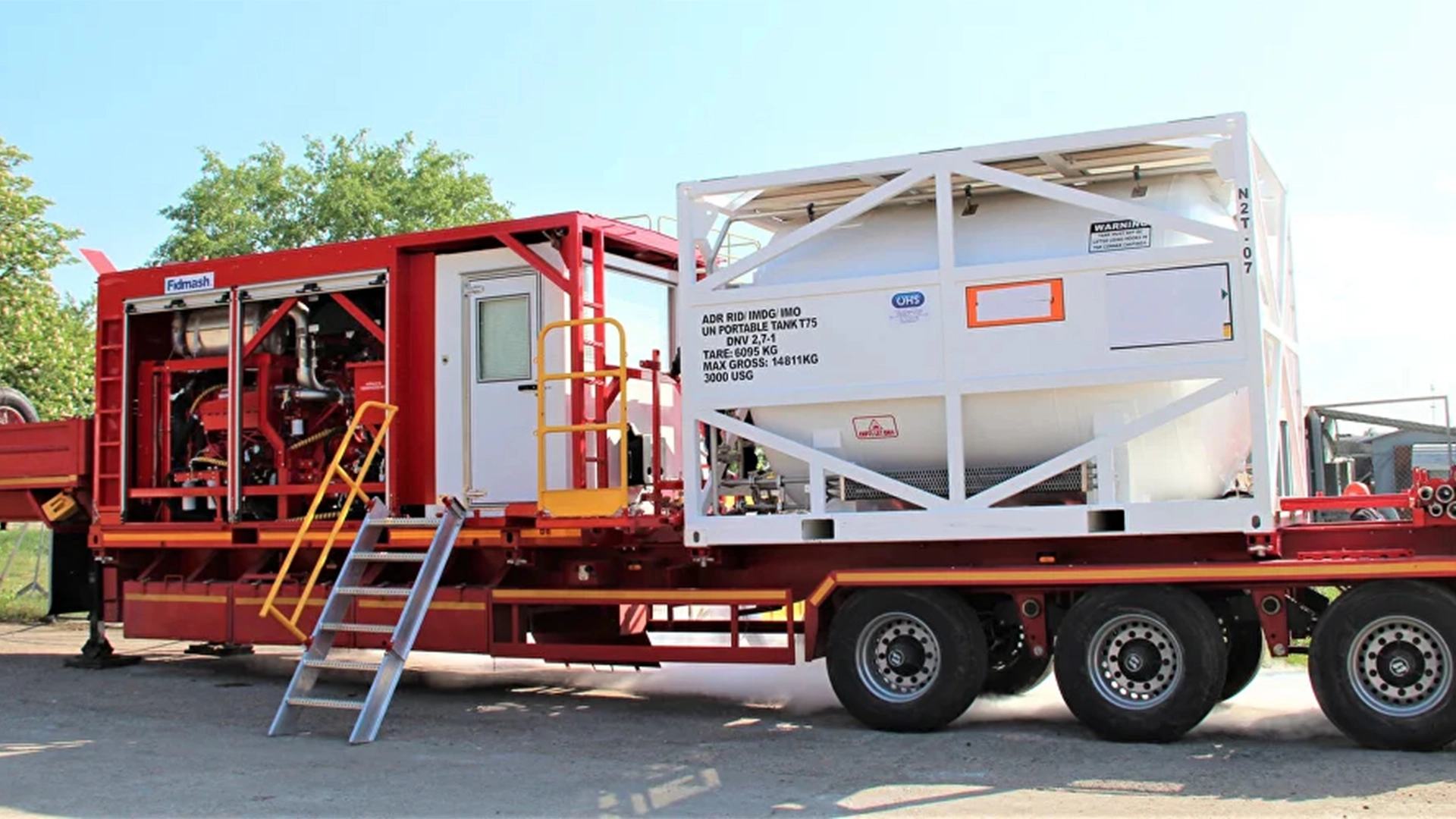

A100-20 Nitrogen Unit
Transport | semitrailer |
Max working pressure | 10 000 PSI |
Max rate | 180 000 SCFH |
Gaseous N2 purity | 99,9 % |
LiN tank | 3 000 USG |
Weight of filed liquid nitrogen | 19 180 lbs |
A100-50 Nitrogen Unit
Transport | semitrailer |
Max working pressure | 10 000 PSI |
Max rate | 180 000 SCFH |
Gaseous N2 purity | 99,9 % |
LiN tank | 3 000 USG |
Weight of filed liquid nitrogen | 19 180 lbs |

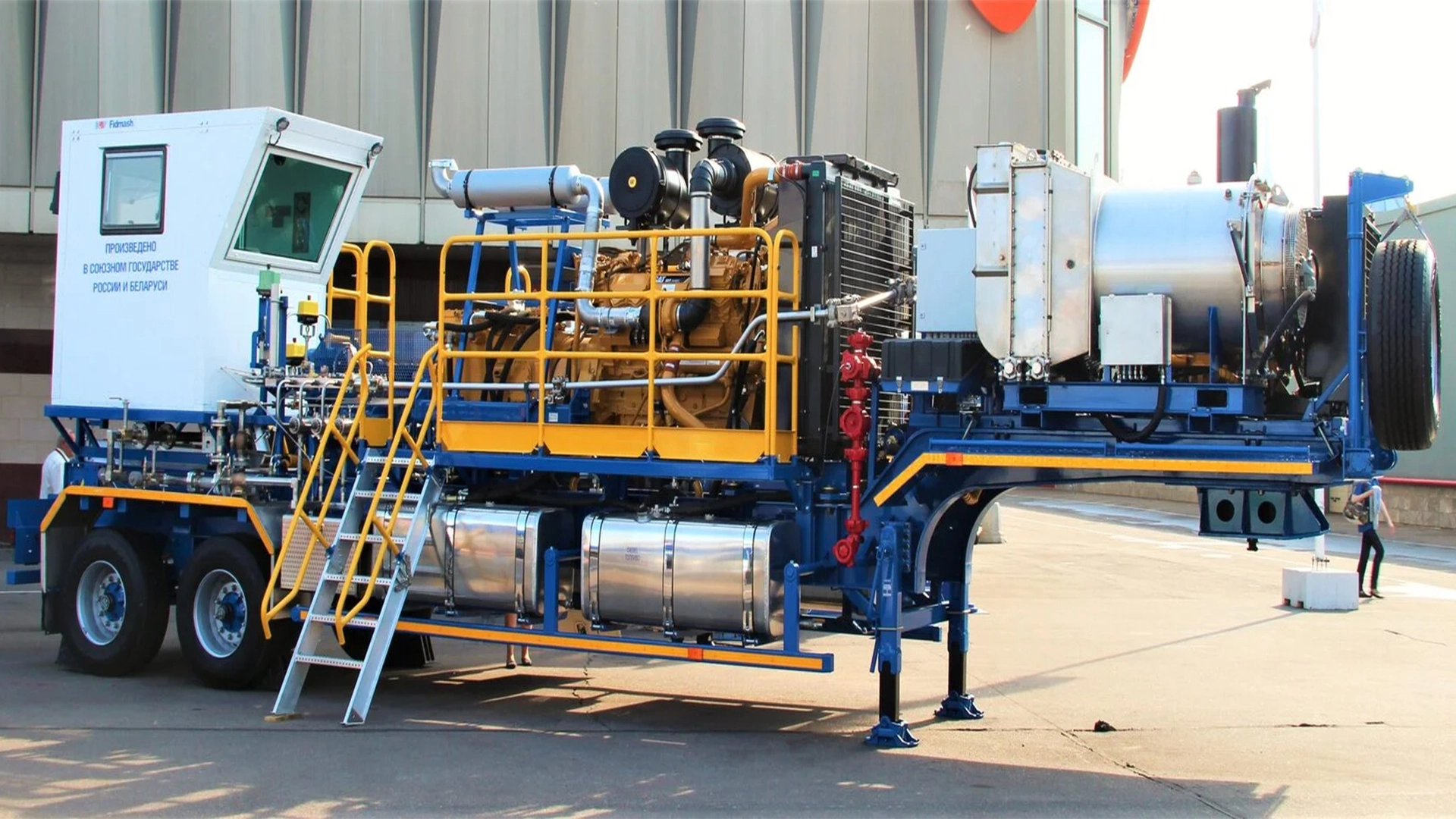

A300 Nitrogen Unit
Transport base | semitrailer |
Max working pressure | 15 000 PSI |
Max rate | 640 000 SCFH |
Gaseous N2 purity | 99,9 % |
