Hydraulic Fracturing Equipment
We offer full range of hydraulic fracturing equipment: frac pump unit, blenders, hydration units, iron, sand feeders, fluid heating units, chemical additive units, data vans.
We have practical solutions and can offer you wide range of options based on the market requirements, body load or semitrailer based or skid mounted for hard to reach regions, including offshore platforms.

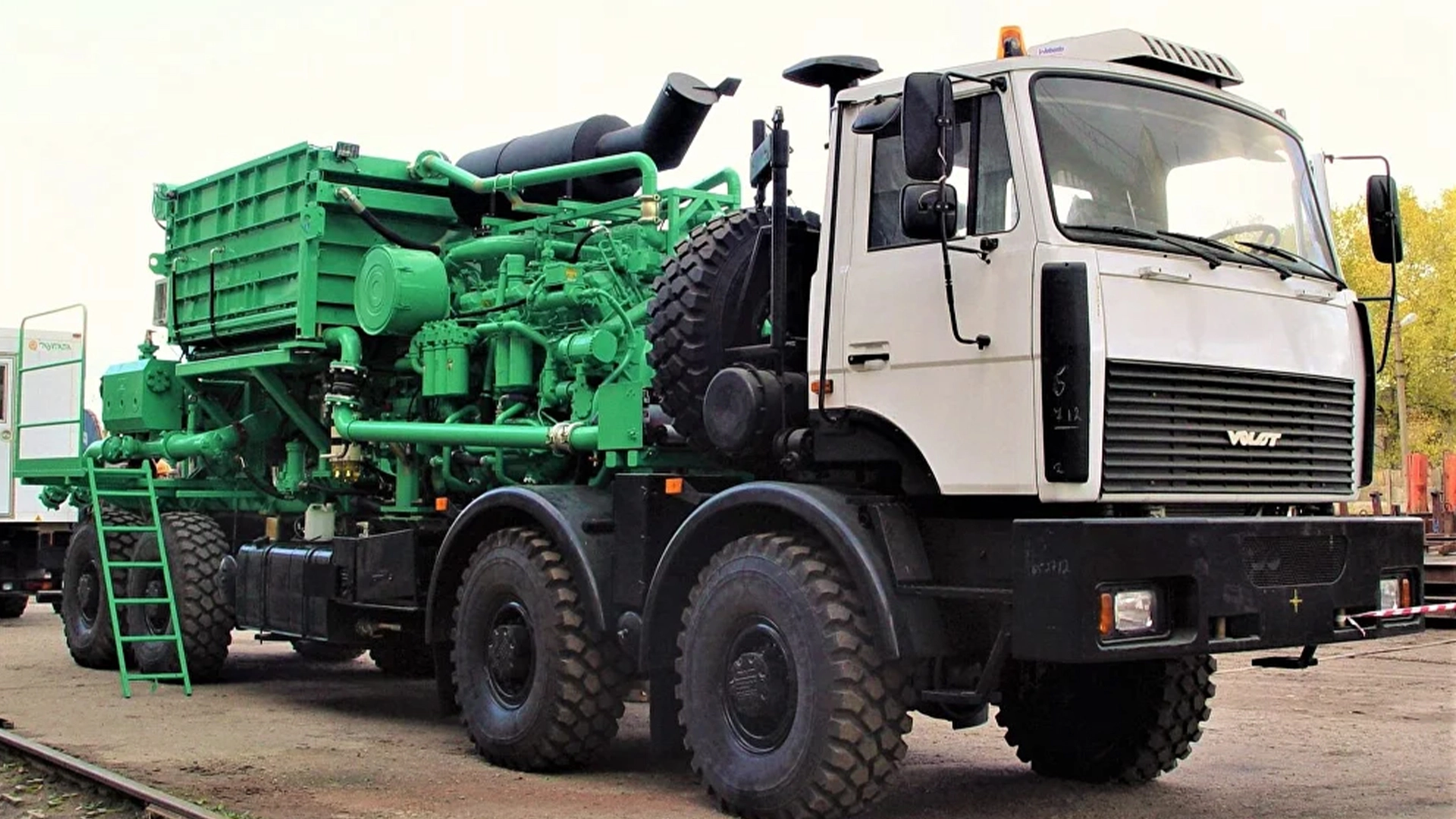

H2501 Frac Pump Units
FIDMASH Frac Pump Units are designed for pumping different types of fluids into the well during hydraulic fracturing of oil and gas formations, as well as for well washout, hydroblasting and matrix treatment of bottomhole zone and well testing.
Transport bas | truck chassis / semitrailer / skid |
Engine power | 2 500 h.p. (1 864 kWt) |
Working pressure | max 125 MPa |
Max flow rate | 5 500 l/min |

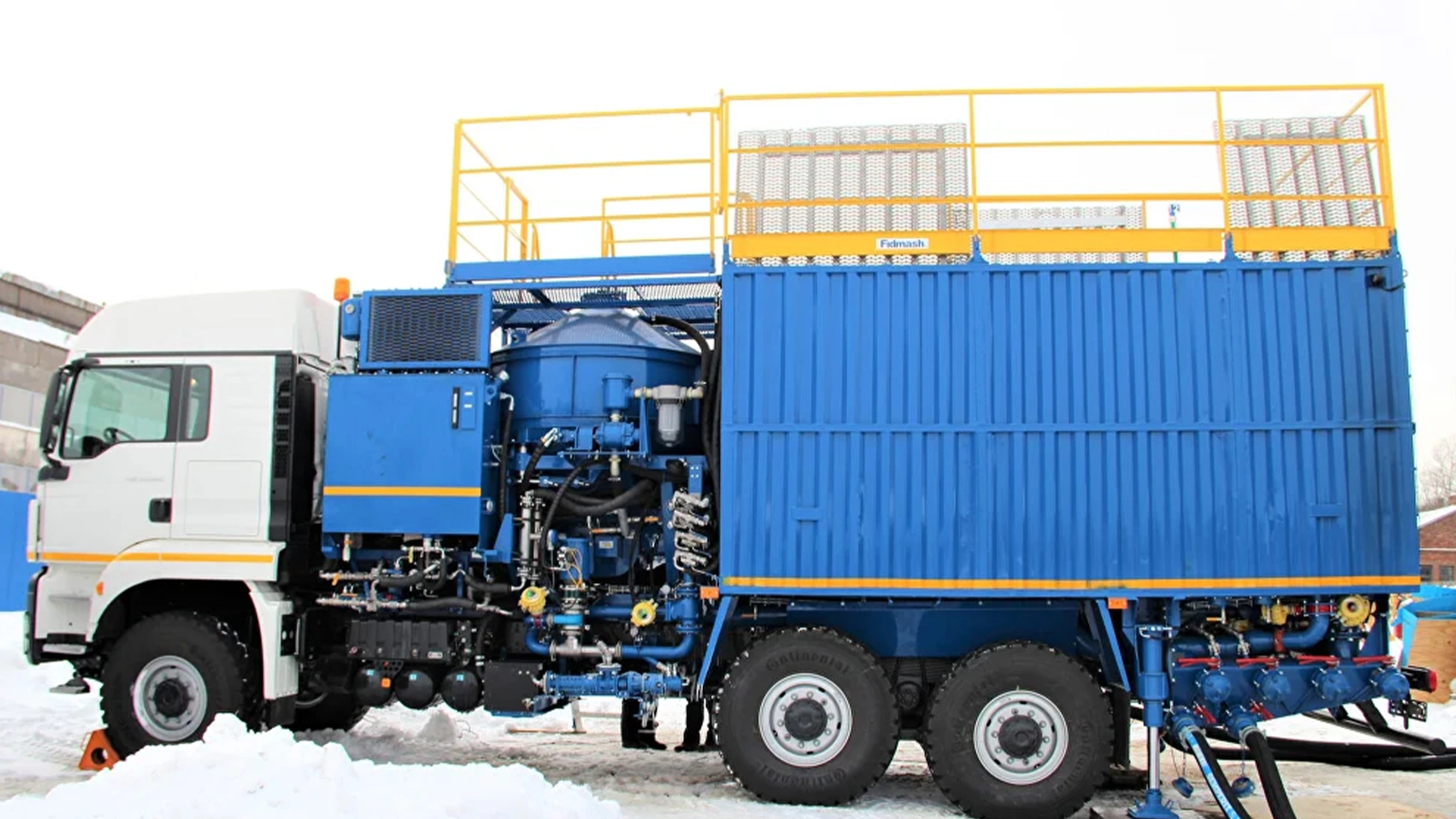

MH25 Hydration Units
FIDMASH hydration units are designed for preparation of water based gels using dry or liquid gelling agent directly during hydraulic fracturing operation.
Transport base | truck chassis / semitrailer / skid |
Flow rate | 10 000 l/min (with 3 min hydration time) |
Type of gelling agent | dry / liquid |
Hydration tank volume | max 30 m3 |
Gel tank volume | max 2-4 m3 |

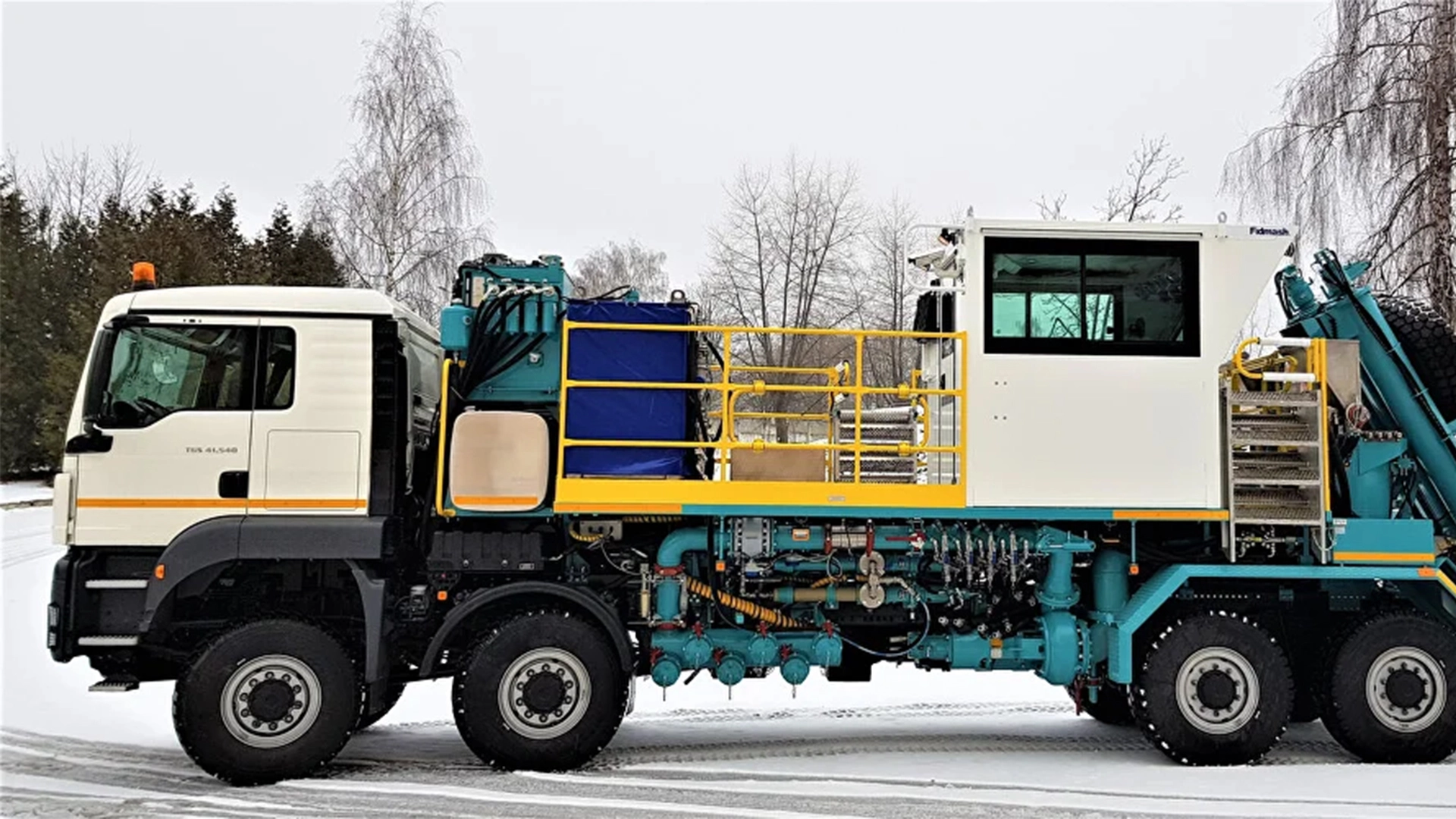

MC600 / MC1200 Blenders
FIDMASH blenders are designed for preparation of technological fluids and mixtures based on sand-filled liquid with specific concentration of hard sand component (proppant), liquid and dry chemical additives and for their following delivery to pumping units during fracturing operations.
Transport base | truck chassis / semitrailer / skid |
Quantity of augers | max 3 ea. |
Proppant feed speed | max 12 m3/min |
Mixing tank | open / closed |
Max flow rate | 24 000 l/min |
Max concentration | 1,8 kg/dm3 |

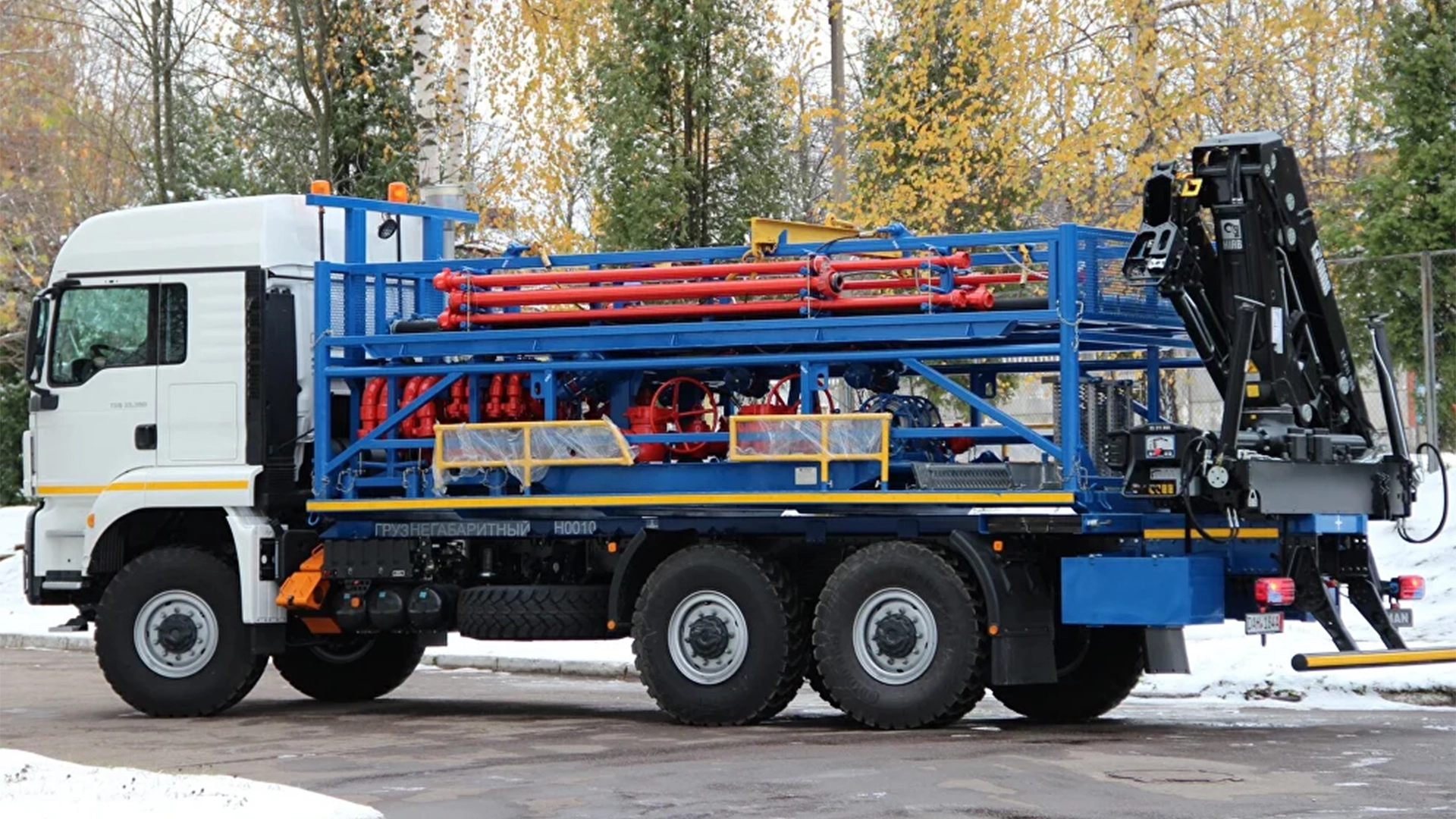

MT4(6)-105 Manifold Units
FIDMASH manifold unit is designed to accommodate, transport and install the equipment which provides low-pressure and high-pressure plumbing between all the equipment of fracturing fleet during a frac job on the well site.
Transport base | truck chassis 6×6 or 8×8 / skid |
Quantity of frac pump unit connection | 4 – 16 ea. |
Crane | manipulator / winch |
Sand Feed Units
FIDMASH Sand Feed Units are designed for transportation (empty) via different type of roads and (in stationary position) high-speed checked delivery of sand materials (sand, proppant etc.) from the sand bin into the blender receiver on the well site during fracturing operation.

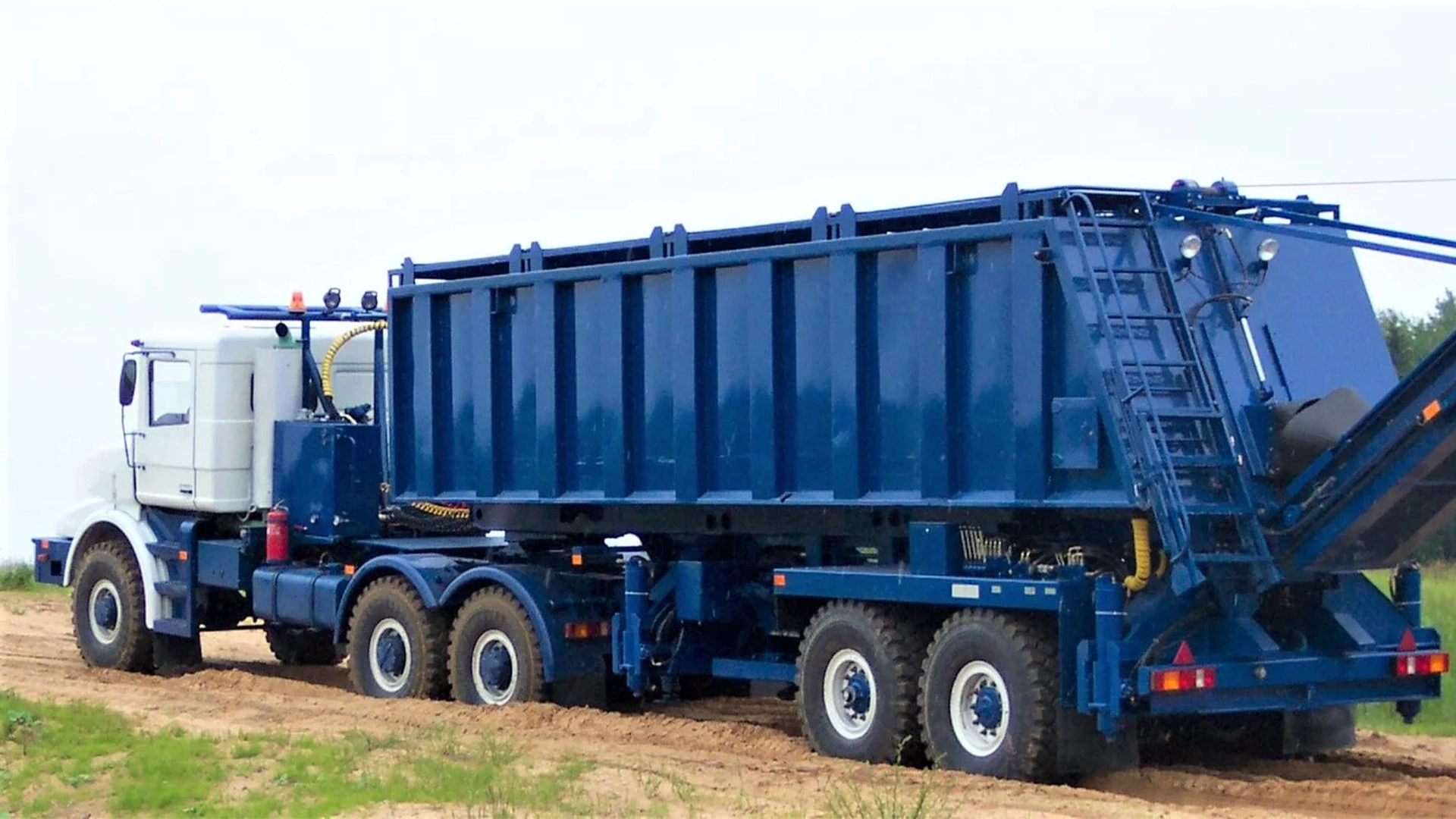

Т-40 / T-100 Sand Feed Unit
Transport base | truck chassis 8х8 / semitrailer |
Bin capacity | 22 m3 / 48 m3 |
Load capacity | 40 t / 100 t |
Unloading speed | 5 m3/min |
Raise angle | max 43⁰-45⁰ / conveyor |

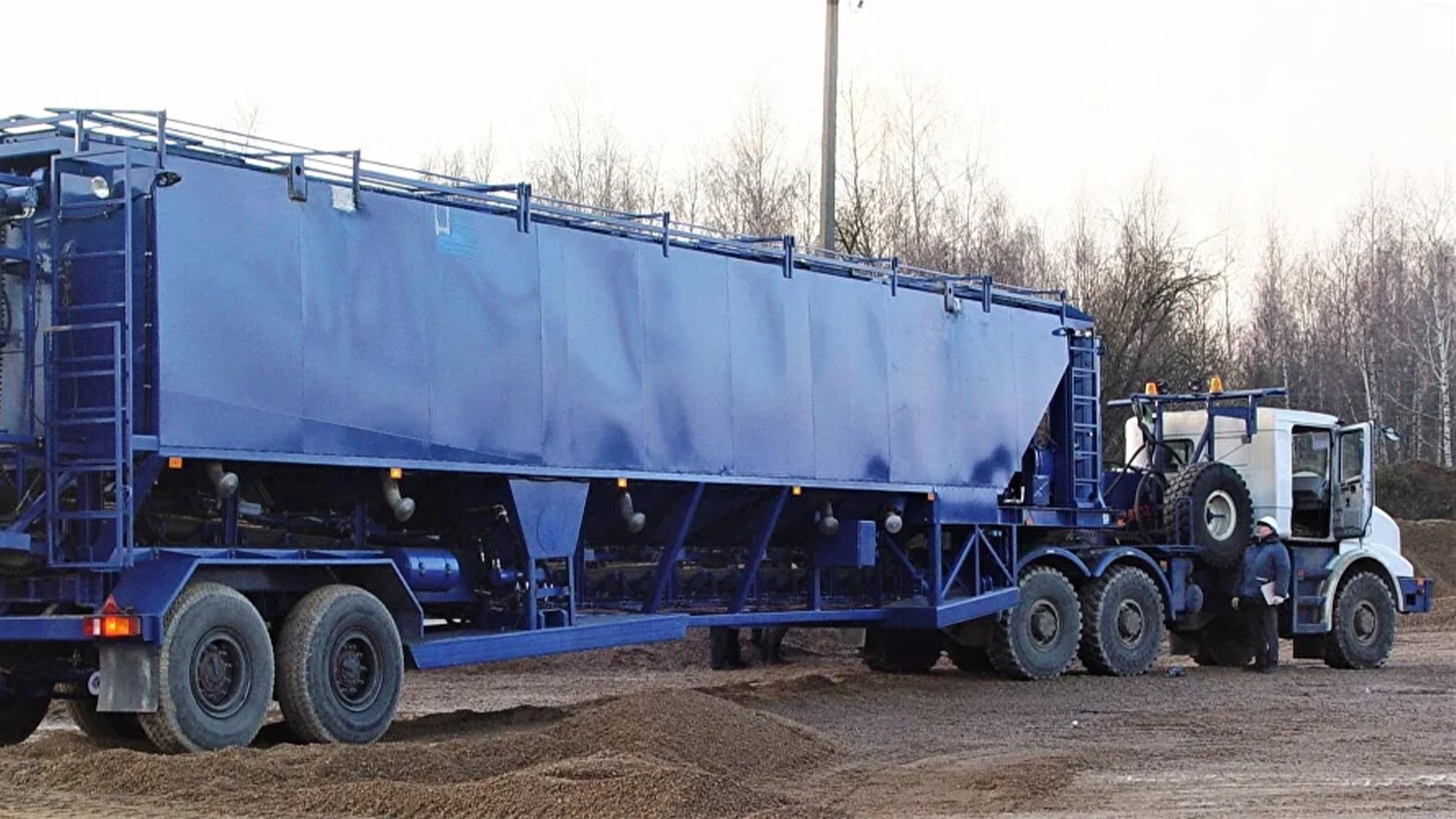

T-150 Sand Feed Unit
Transport base | semitrailer |
Bin capacity | 76 m3 |
Load capacity | 150 t |
Unloading speed | 5 m3/min |
Delivery means | conveyor |

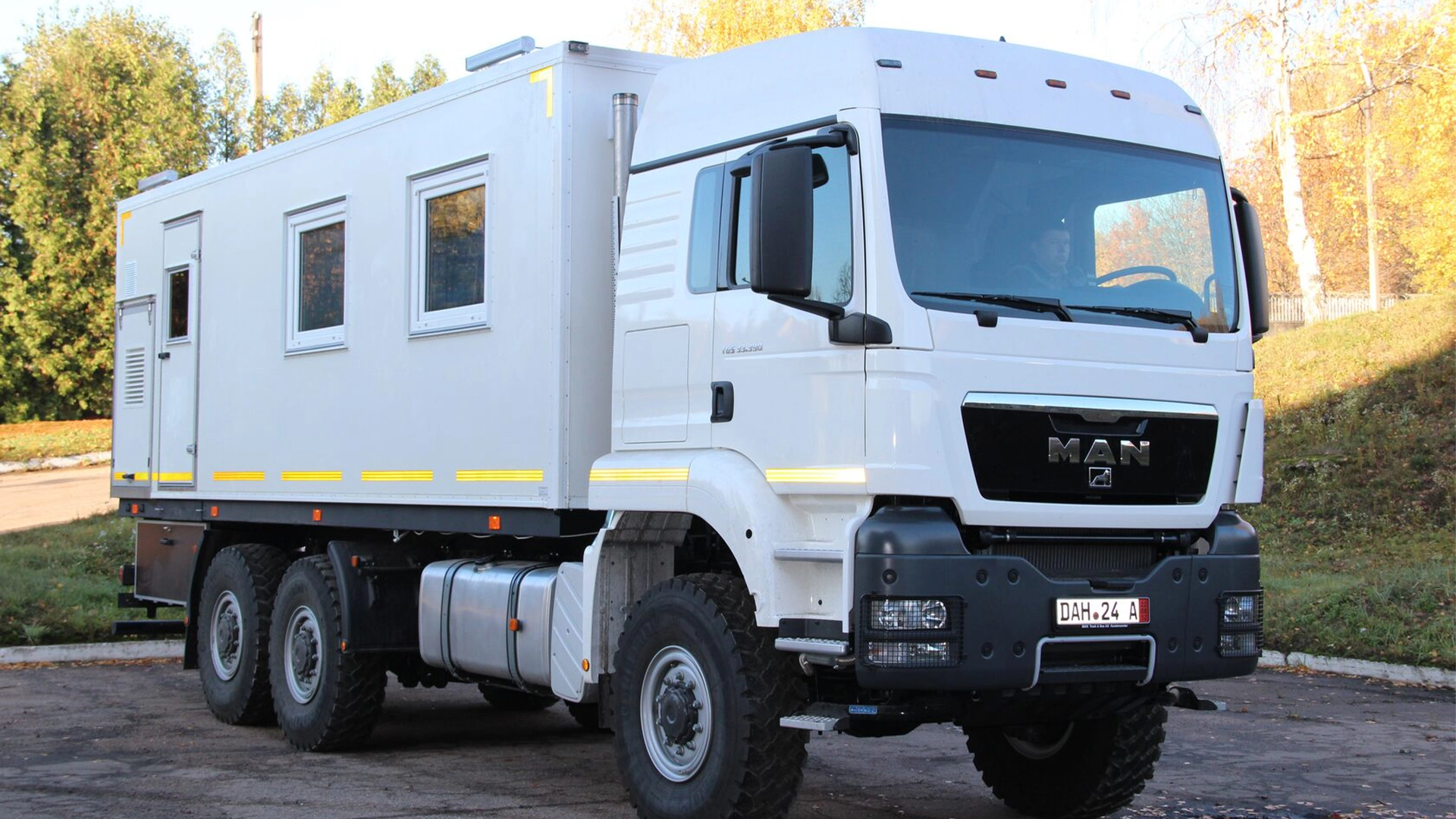

Data Vans
FIDMASH Data Vans are designed for control of hydraulic fracturing process, rated for max 16 frac pump units, 2 blenders, hydration unit, chemical additive unit. The operators can set job parameters and gather real time data during hydraulic fracturing operation. Every customer can individually request to equip the data van with chemical laboratory, generator, communication equipment and video surveillance, lighting poles.
The data van shall not be used for transportation of people.
Data Vans
Transport base | truck chassis 8х6 / 8х8 / skid |
Generator | max 30 kWt |
