Cementing Units
FIDMASH Cementing Pump Units are designed for automatic mixing of cementing solutions and supply under pressure into the well during drilling and workover operations. The unit can be used for other well stimulation and pumping jobs.
Double pump cementing units can do the following jobs during well and laterals drilling and construction:
– Cementing of production casing
– Cementing of well shanks in horizontal and directional holes
– Cementing plugs
– Stimulation pumping

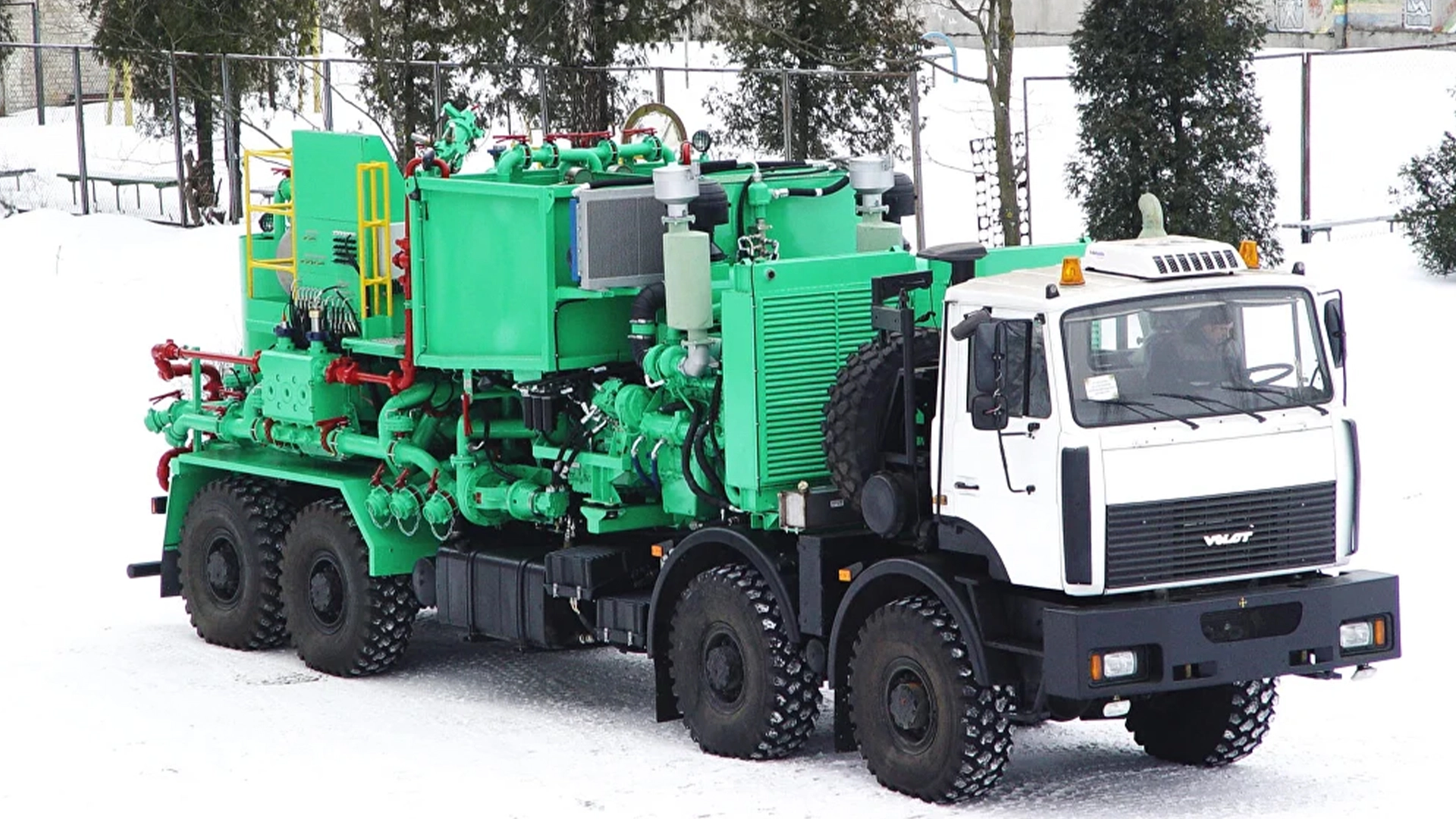

HC1000-10 Twin Pump Cementing Unit
Transport base | all-wheel drive truck chassis 8×8 |
Engine power | 2 х 403 h.p. (540 kWt) |
High-pressure pump | 2 ea. |
Max working pressure | 10 000 PSI |
Max flow rate | 3 m3/min |
Density of mixed fluid | 1 – 1,7 g/sm3 |
Speed of fluid mixing | 0 – 1,9 m3/min |
Mixing tank capacity | 1,1 m3 |
Displacement tanks | 2х2 m3 |

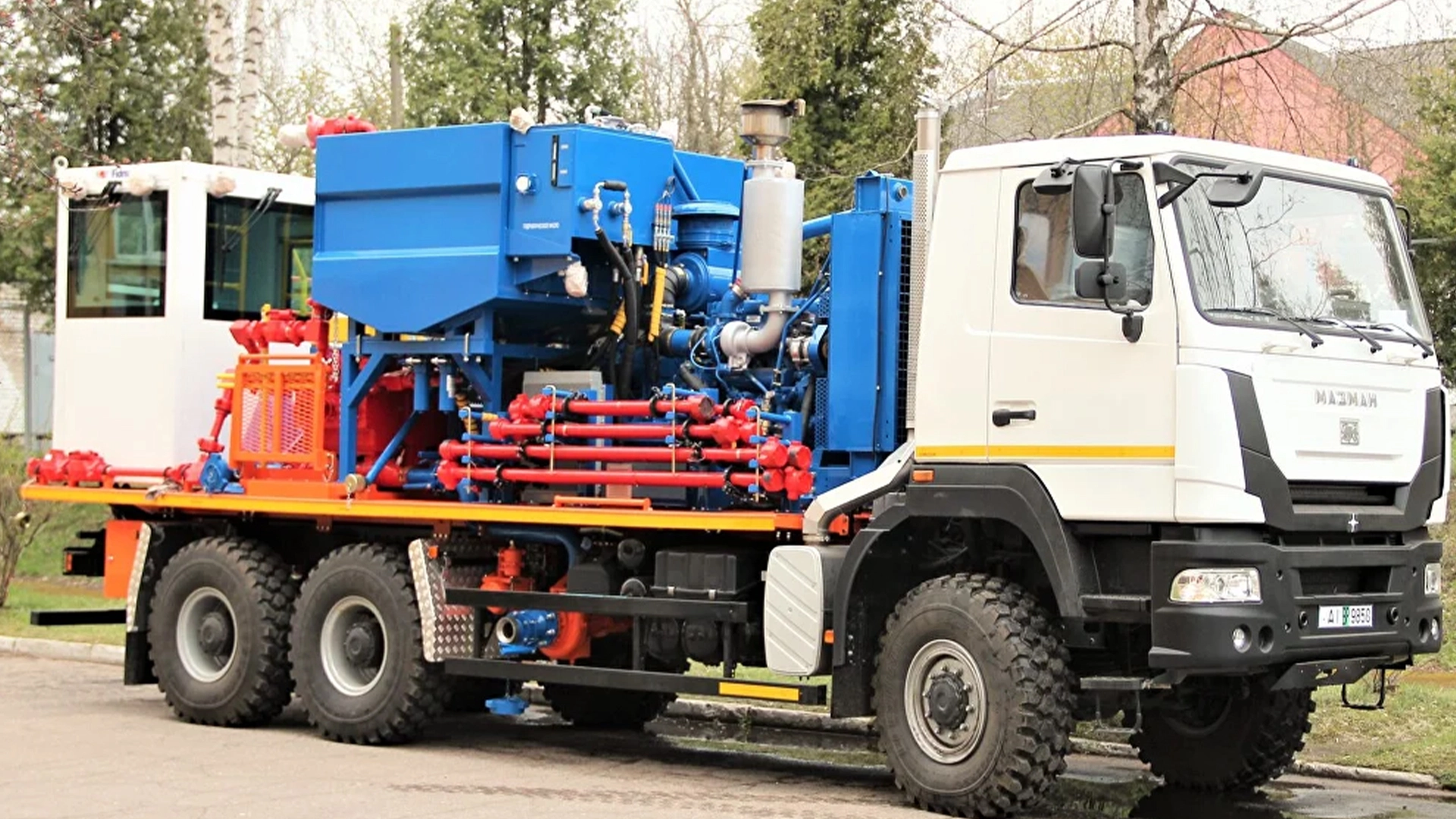

H505 Pump Unit
Transport base | truck chassis MAZ 6х6 |
Engine power | 354 h.p. (475 kWt) |
Max working pressure | up to 15 000 PSI |
Max flow rate | 1,5 m3/min |
Displacement tanks | 2х2 m3 |
